FLA Series
F.L.A. 24230-EU
5kWh
Low Voltage
Up to 15 Units
Wall or Floor Installation
Integrated WiFi
Product Introduction

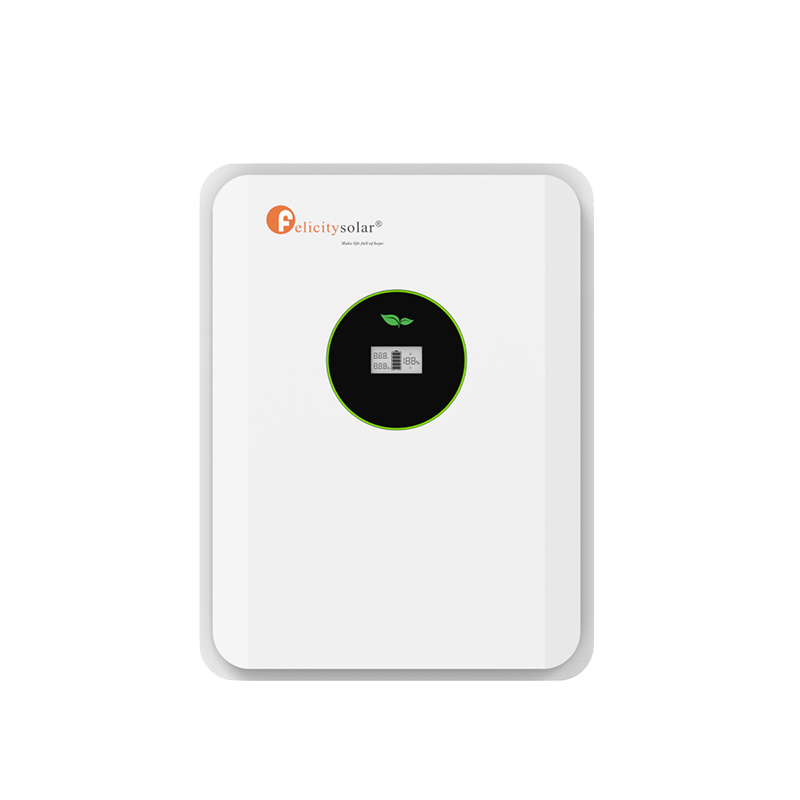

The FLA24230-EU is equipped with a lithium iron phosphate battery designed for residential use. Developed according to customer needs and market demands, this advanced energy storage system provides a high-quality and highly reliable power supply for various devices. The product stands out for its long service life, its ability to operate in high temperature environments and its compact design that requires minimal installation space.
The FLA24230-EU incorporates a battery management system independently developed by our team. When connected to the grid or a photovoltaic system as a power source, the product can store electricity by charging the battery. In the event of a power outage from the grid or photovoltaic system, the product autonomously supplies energy to household loads. In addition, multiple units can be connected in parallel to form a large-capacity multi-module system, meeting long-term energy storage needs.
The FLA24230-EU incorporates a battery management system independently developed by our team. When connected to the grid or a photovoltaic system as a power source, the product can store electricity by charging the battery. In the event of a power outage from the grid or photovoltaic system, the product autonomously supplies energy to household loads. In addition, multiple units can be connected in parallel to form a large-capacity multi-module system, meeting long-term energy storage needs.
Product Advantages
● LiFePO4: Greater safety and longer life.
● Multiple Protections: Built-in smart BMS, circuit breaker and fuse.
● Flexible Installation: Wall or floor mounting.
● Wide Compatibility: Compatible with the main brands of inverters.
● High Scalability: Capacity up to 88.5 kWh.
● Integrated WiFi/Bluetooth: Remote monitoring of battery pack data.
● Equipped with an aerosol fire extinguishing system.
● In case of overcurrent causing the fuse to break, it can be easily replaced externally, offering great convenience.
● Multiple Protections: Built-in smart BMS, circuit breaker and fuse.
● Flexible Installation: Wall or floor mounting.
● Wide Compatibility: Compatible with the main brands of inverters.
● High Scalability: Capacity up to 88.5 kWh.
● Integrated WiFi/Bluetooth: Remote monitoring of battery pack data.
● Equipped with an aerosol fire extinguishing system.
● In case of overcurrent causing the fuse to break, it can be easily replaced externally, offering great convenience.
Model
FLA24230-EU
Operating voltage
22.4-28.8V
Energy
6.4kWh
Scalability
Up to 15 units in parallel (96kWh)
Depth of Discharge(DOD)
≥95%
Life cycle
≥6,000 cycles
Communication
RS485/CAN
Protection level
IP21
Discharge
- [Certificate for Safe Transport of Goods by Road] FLS2F6402YL501-1 （FLA24230-EU）
- [Certificate for Safe Transport of Goods by Sea] FLS2F6402YM501-1 （FLA24230-EU）
- [GHS Label Design Report] FLS2F6402P01-1 （FLA24230-EU）
- [Hazard and Classification Identification] FLS2F6402DI01-1 （FLA24230-EU）
- [MSDS] FLS2F6402SDS01-1 （FLA24230-EU）
- [UN38.3 TEST REPORT] FLS2F6402U01-1 （FLA24230-EU）
- [UN38.3 TEST Summary] FLS2F6402G01-1 （FLA24230-EU）
