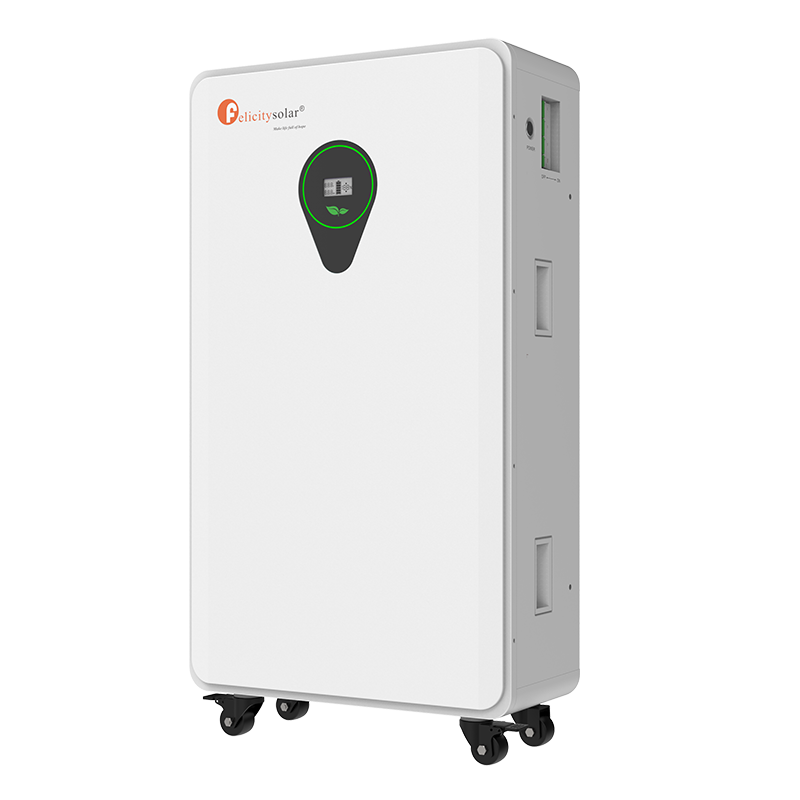

FLA Series
F.L.A. 48460TG2-EU
23.5kWh
Low voltage
Capacity up to 352.5 kWh
Floor installation
smart BMS
10 year warranty
Product Introduction
The FLA48460TG2-EU is equipped with a lithium iron phosphate battery designed for residential use. Developed according to customer needs and market demands, this advanced energy storage system offers high quality and reliable power supply for various devices. The product stands out for its long useful life, its ability to operate in high temperature environments and its compact design that requires minimal installation space.
The FLA48460TG2-EU incorporates a battery management system (BMS) independently developed by our team. When connected to the grid or a photovoltaic system as a power source, the product can store energy by charging the battery. In the event of a power outage from the grid or photovoltaic system, the product supplies power to household loads autonomously. In addition, multiple units can be connected in parallel to form a large-capacity modular system, meeting long-term storage requirements.
The FLA48460TG2-EU incorporates a battery management system (BMS) independently developed by our team. When connected to the grid or a photovoltaic system as a power source, the product can store energy by charging the battery. In the event of a power outage from the grid or photovoltaic system, the product supplies power to household loads autonomously. In addition, multiple units can be connected in parallel to form a large-capacity modular system, meeting long-term storage requirements.
Product Advantages
• LiFePO4: Greater safety and longer useful life.
• Multiple protection: Built-in smart BMS, switch and fuse.
• Flexible installation: Floor installation.
• Wide compatibility: Compatible with the main brands of inverters.
• High scalability: Capacity up to 352.5 kWh.
• Integrated WIFI/Bluetooth: Remote monitoring of battery pack data.
• Internal aerosol fire extinguishing system.
• When overcurrent occurs and the fuse blows, it can be easily replaced from the outside, offering great convenience.
• Multiple protection: Built-in smart BMS, switch and fuse.
• Flexible installation: Floor installation.
• Wide compatibility: Compatible with the main brands of inverters.
• High scalability: Capacity up to 352.5 kWh.
• Integrated WIFI/Bluetooth: Remote monitoring of battery pack data.
• Internal aerosol fire extinguishing system.
• When overcurrent occurs and the fuse blows, it can be easily replaced from the outside, offering great convenience.
Model
FLA48460TG2-EU
Operating voltage
44.8-57.6V
Energy
23.5kWh
Scalability
Up to 15 units in parallel (352.5 kWh)
Depth of discharge (DOD)
≥95%
Life cycle
≥6,000 cycles
Communication
RS485/CAN
Protection level
IP21
Discharge
- [Certificate for Safe Transport of Goods by Road] FLS2F8S02YL501_FLA48460TG2-EU
- [Certificate for Safe Transport of Goods by Sea] FLS2F8S02YM701_FLA48460TG2-EU
- [GHS Label Design Report] FLS2F8S02P01_FLA48460TG2-EU
- [Hazard and Classification Identification] FLS2F8S02DI01_FLA48460TG2-EU
- [MSDS] FLS2F8S02SDS01_FLA48460TG2-EU
- [UN38.3 TEST REPORT] FLS2F8S01U01_FLA-L460_FLA48460TG2-EU
- [UN38.3 TEST REPORT] FLS2F8S02U01_FLA48460TG2-EU
- [UN38.3 TEST Summary] FLS2F8S02G01_FLA48460TG2-EU
- [Verification of Overcharge-Short-Overdischarge Protection] FLS2F8S02W01_FLA48460TG2-EU
