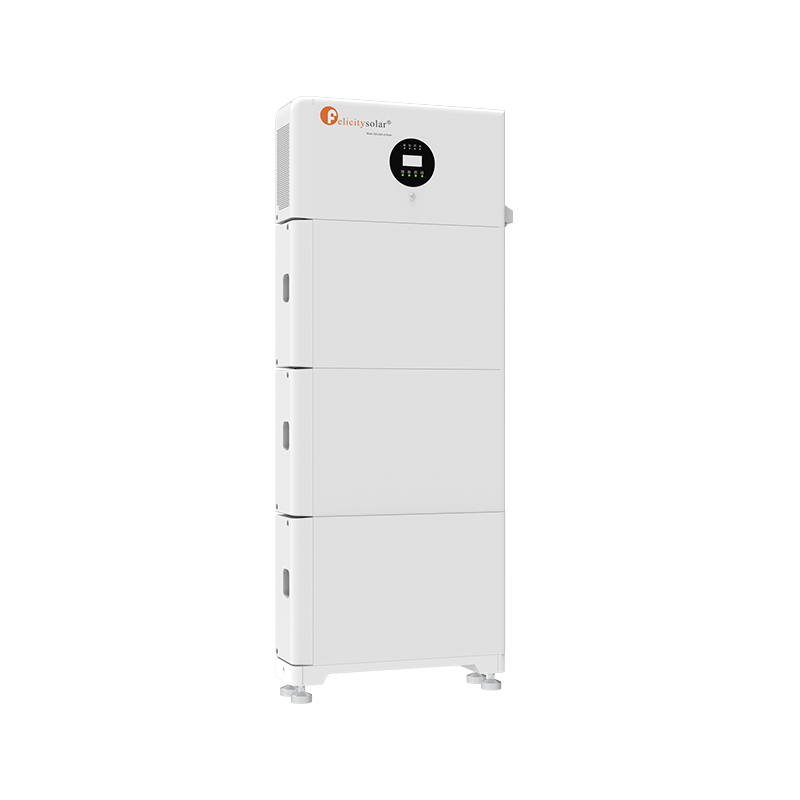

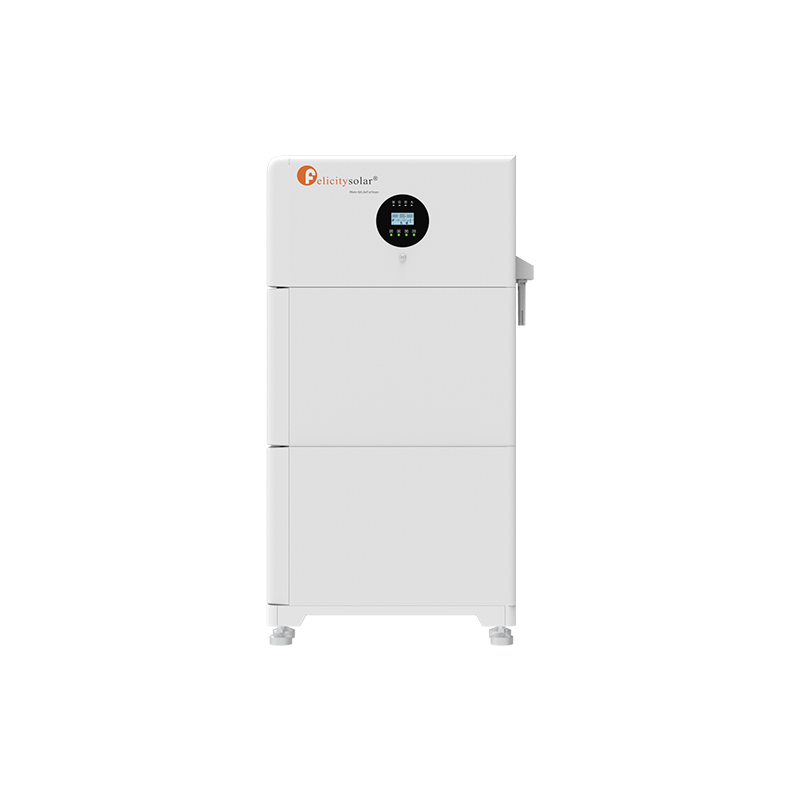

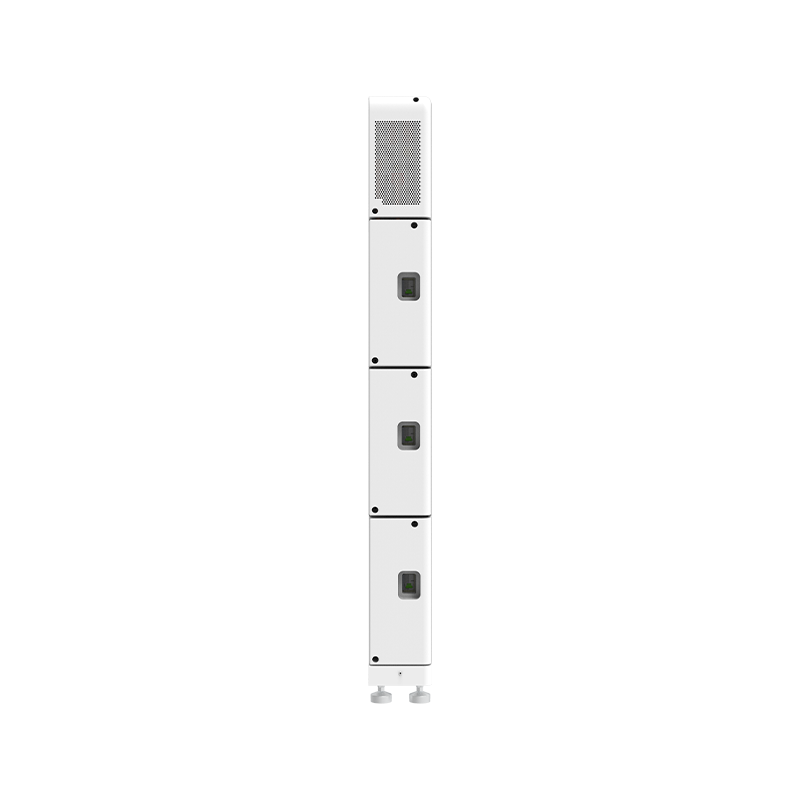

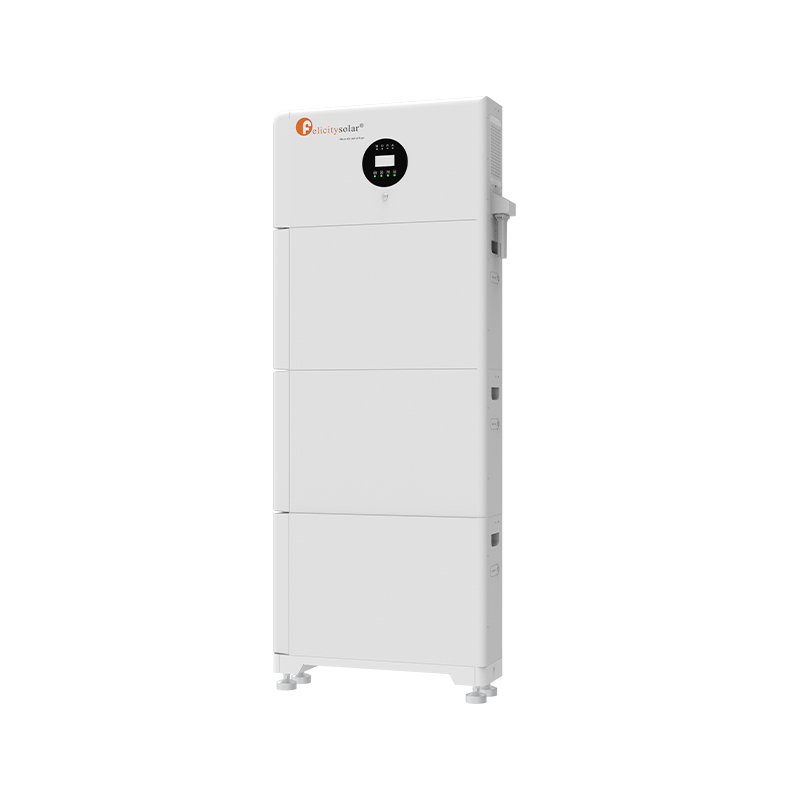

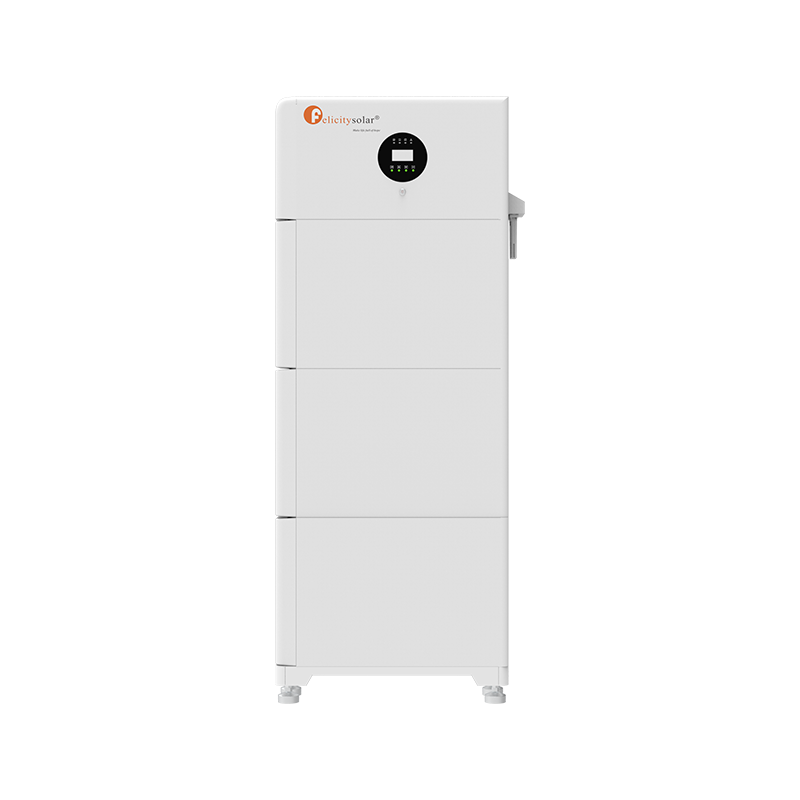

AI Series

AI100- 5048
5.12kWh
Low Voltage
All-in-one
Stack-mounted
Product Introduction
This all-in-one system intelligently integrates solar, grid, and battery power to ensure a reliable energy supply. It stores excess solar energy for use when you need it most—at night, during peak demand, or in a blackout—keeping your home or business powered without extra costs. By maximizing self-consumption and reducing reliance on the grid, it helps you achieve greater energy independence and long-term savings.
Product Advantages
● Wide PV voltage input range (90VDC-450VDC)
● Maximum PV input current increases to 20A
● Battery charging current up to 100A
● Built-in MPPT solar charge controller
● Support parameters setting via LCD screen
● Maximum PV input current increases to 20A
● Battery charging current up to 100A
● Built-in MPPT solar charge controller
● Support parameters setting via LCD screen






Model
AI100-5048
Rated Power
5kW
Inverter Scalability
5~60kW (Supports up to 12 units in Parallel)
Battery capacity
5.12kWh

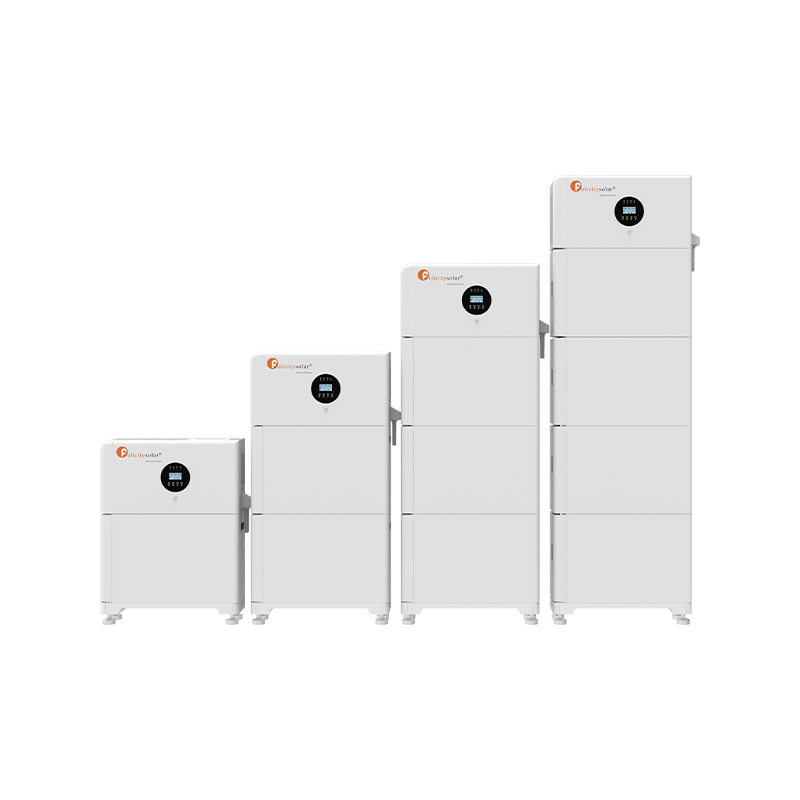

Battery Scalability
5.12~76.8kWh (Stackable 1~15pcs in each unit)
Max. Efficiency
97.6%
Cycle Life
≥6000 Cycles
Communication
CAN/RS485
Protection Rating
IP21
