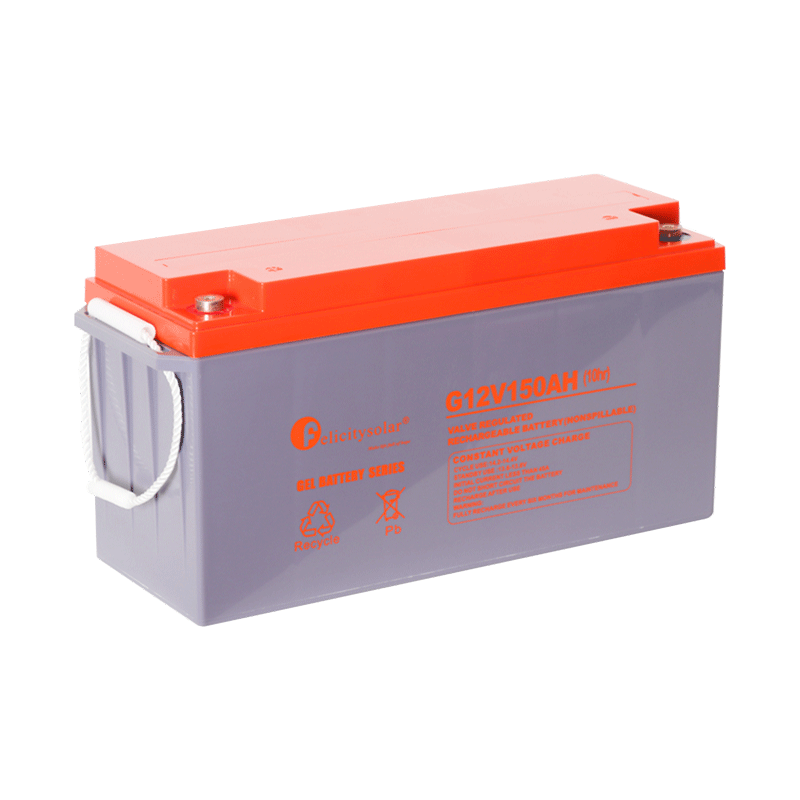

Gel Series

G12V 150AH
150AH
12V(single cell)
42.5Kg
1500A(5 sec)
Internal Resistance Approx. 4.2 mΩ
Discharge: -20℃~60°C
Product Introduction
La serie (ciclo profundo de gel) está especialmente diseñada para descarga cíclica frecuente. Mediante el uso de cuadrículas fuertes y material activo especialmente diseñado, la batería de la serie DC ofrece un 30% más de vida cíclica que la serie en espera. LT es adecuado para sistemas de energía solar, marina y RV, etc.
Product Advantages
● Lower self-discharge rate, extending battery life.
● Even electrolyte distribution, preventing stratification.
● Deeper discharge, maximizing lifespan.
● Lower charging current (1/3 of AGM), reducing energy use and heat.
● Certification:UN38.3
● Even electrolyte distribution, preventing stratification.
● Deeper discharge, maximizing lifespan.
● Lower charging current (1/3 of AGM), reducing energy use and heat.
● Certification:UN38.3



Model
G12V150AH
Cells Per Unit
6
Voltage Per Unit
12
Max.Discharge Current
1500A(5 sec)
Internal Resistance
Approx. 4.2 mΩ
Recommended Maximum Charging Current Limit
45A
Normal Operating Temperature Range
25℃± 5℃
